DRAYTEK AP-1000C 400+867 Mbps 2PORT GIGABIT 2.4 GHZ & 5 GHZ MESH WIFI INDOOR ACCESS POINT

Ürün Kodu: 17094
MPN / EAN: 4710484740847
Marka: DRAYTEK

Fiyat için bayi girişi yapın

Orijinal ürün, distribütör garantili.

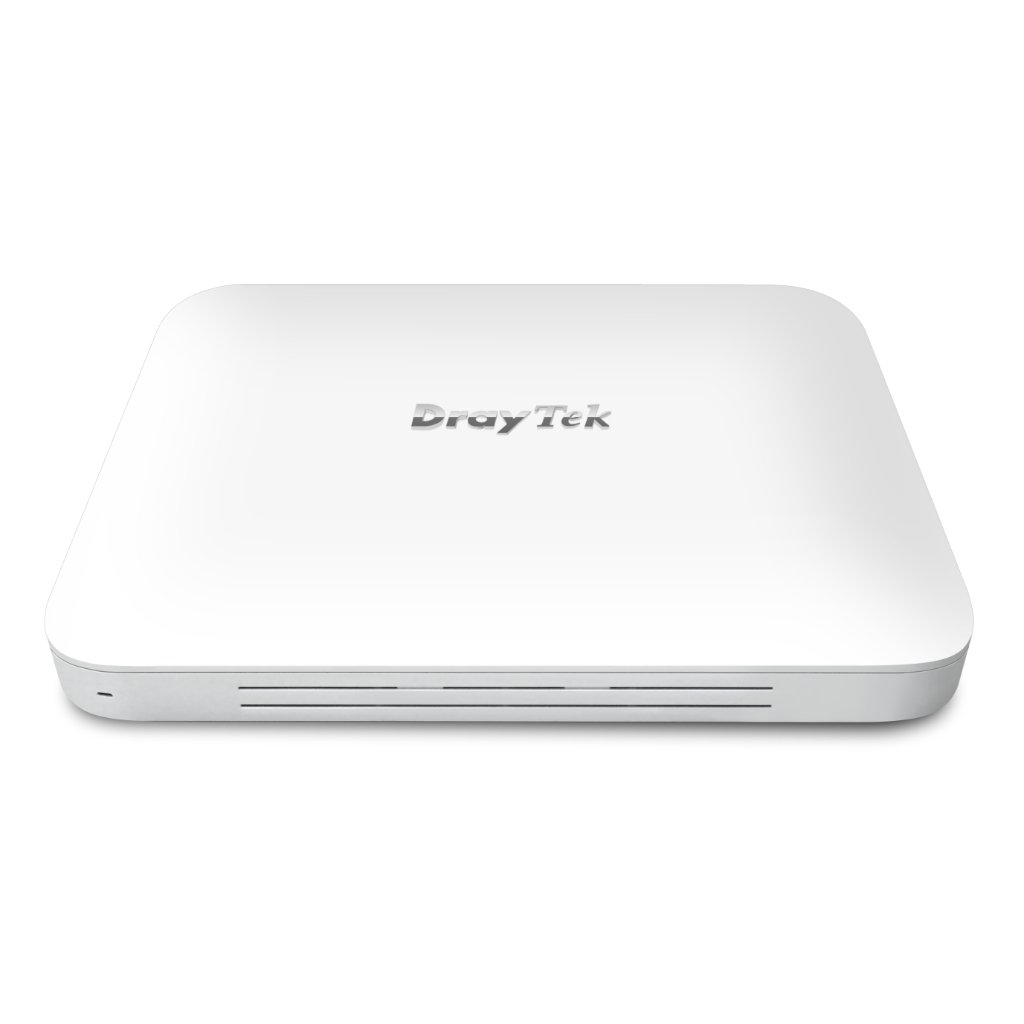

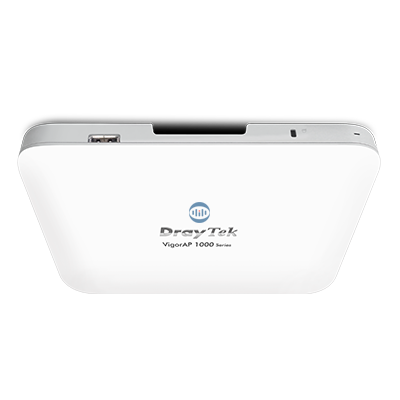

Draytek VigorAP 1000C Ceiling Wireless PoE Access Point

DrayTek VigorAP 1000C üzerinde optimize edilmiş antenler ile tavana monte edilebilen 802.11ac, 384 aynı anda kullanıcı, 2.2Gbps hız ve 8 SSID destekli kablosuz erişim noktasıdır. Özellikle okul kampüsleri, toplantı odaları, kafeler gibi yüksek yoğunluklu ortamlar için ideal bir kablosuz erişim çözümüdür.AirTime Fairness, Band Steering ve Mesh gibi özelliklerin yanı sıra Merkezi AP Yönetimi yazılımı ile uyumludur. 2xGiga LAN Portu vardır

Donanım Arayüzleri
LAN Port	2x 10/100/1000M Base-T, RJ-45 (PoE-PD Support on Port 1)
USB Port	1x USB2.0 Type A
Antenna	2x Internal PiFA 2.4G Antenna, 4x Internal PiFA 5G Antenna Gain: 2 dBi for 5GHz, 1 dBi for 2.4GHz
Indicator	4x LED 1x Internal Buzzer
Button	1x Factory Reset Button
DC Power Jack	1
Security Lock	1
Kapasite
2.4GHz Peak Speed	400 Mbps
5GHz Peak Speed	867 Mbps
5GHz-2 Peak Speed	867 Mbps
Max. Clients	384 (128 per radio band)
WLAN
2.4GHz Standard	IEEE 802.11b/g/n 2x2 MIMO
5GHz Standard	IEEE 802.11a/n/ac Wave 2 2x2 MU-MIMO
Operating Mode	AP, Mesh Root, Mesh Node, Range Extender
Roaming	AP-Assisted Roaming, PMK-Caching, Pre-Authentication
AirTime Fairness	V
Band Steering	V
Auto Channel Selection	V
Max. Number of SSID	12 (4 per radio band)
WDS	V
Bandwidth Limit per Client	V
Client Numer Limit	Per radio, Per SSID
Connection Time Control	V
WMM	V
Güvenlik
Security Mode	WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication	Personal, Enterprise
WPS	PIN, PBC
Hidden SSIDs	V
MAC Address Filter	Up to 384 entries
Wireless Client Isolation	V
Mobile Device Management	V
Uygulama
Built-in RADIUS Server	V
RADIUS Proxy	PEAP, EAP-TLS
DHCP	DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP	V
MAC Clone	V
802.1q VLAN	V
iOS Keep Alive	V
Schedule	Auto-Reboot, Wi-Fi Up/Down, LED On/Off, Sound Buzzer
Yönetim
Local Service	HTTP, HTTPS, Telnet
Configuration	Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade	HTTP, TFTP, TR-069
Tools	Speed Test, AP Discovery, Statistics, Interference Monitor, Where Am I
Syslog	V
Mail Alert	V
SNMP	v1, v2c, v3
Managed by VigorConnect	V
Managed by VigorACS	V
Fiziksel
Environment	Indoor
Mounting	Ceiling Mount, Wall Mount
Power Method	DC 12V @ 2A / 802.3af/at PoE
Max. Power Consumption	MAYIS.2 watts
Dimension	176 mm x 176 mm x 30 mm
Weight	460 g
Operating Temperature	0 to 45°C
Storage Temperature	-25 to 70°C
Operating Humidity	10 to 90% non-condensing
Certificate	CE, FCC
