DRAYTEK VIGOR AP-802 300MBPS+867MBPS 1PORT GIGABIT 2.4 GHZ & 5 GHZ INDOOR ACCESS POINT

Ürün Kodu: 17093
MPN / EAN: 4712909129763
Marka: DRAYTEK

Fiyat için bayi girişi yapın

Orijinal ürün, distribütör garantili.

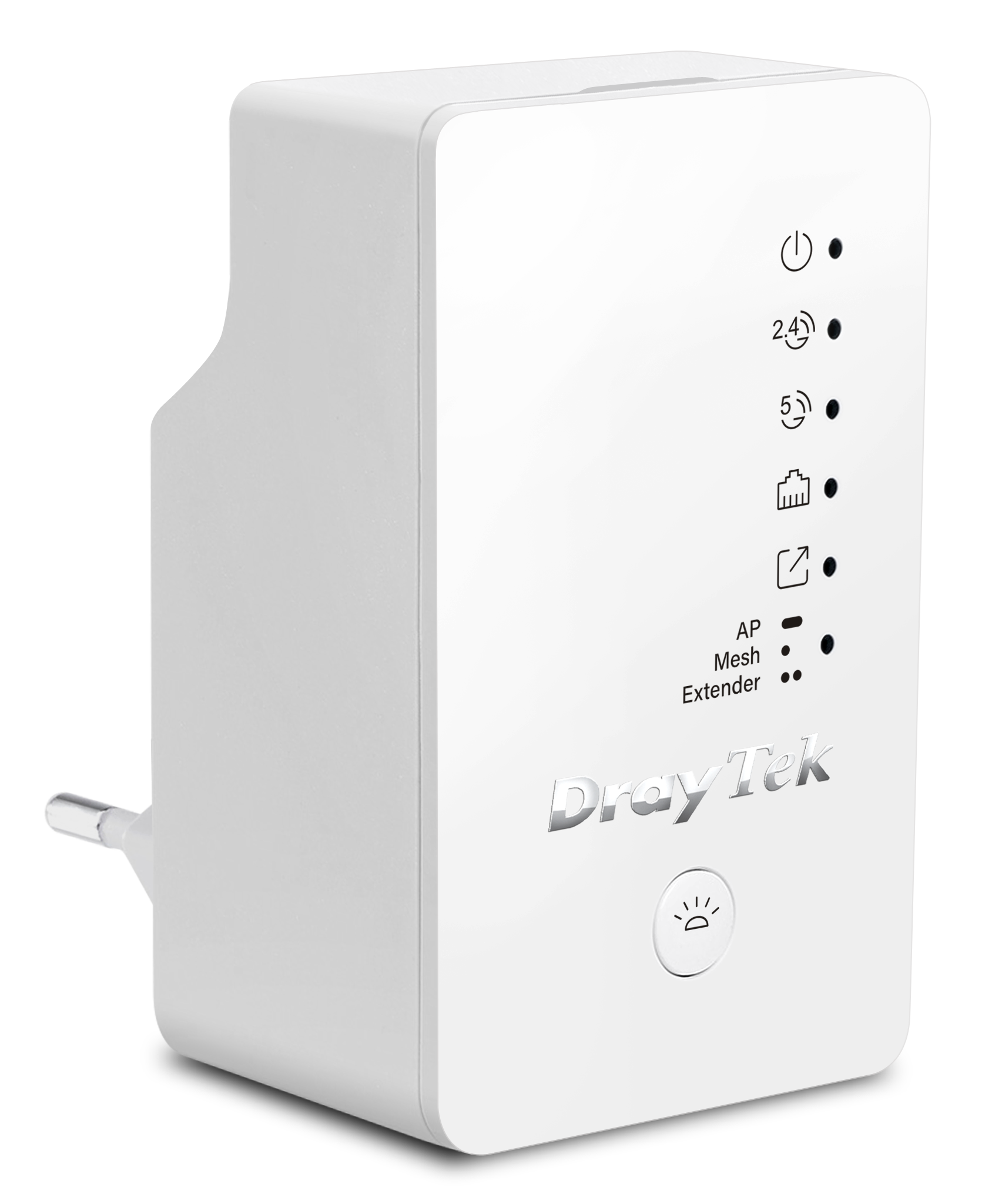

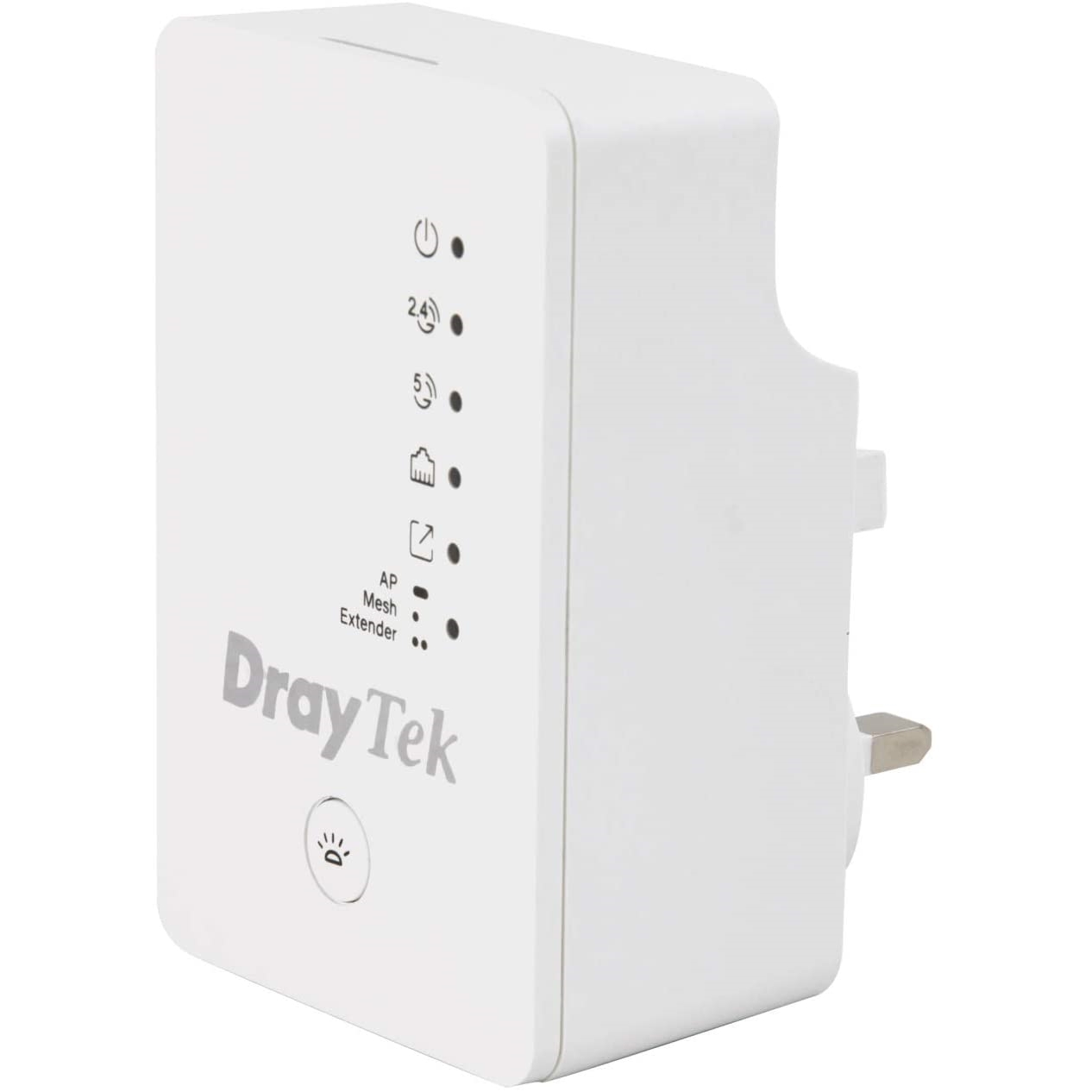

Draytek VigorAP 802 11ac Dual-Band Wireless Wall Plug Access Point

Güç adaptörü formunda tasarlanmış, duvar elektrik prizine doğrudan takılabilen dual band 1200Mbps hıza ulaşabilen 802.11ac standardını destekleyen wireless access point cihazıdır. Kablosuz ağ erişimini basitleştiren, gelişmiş özelliklere sahip ve aynı zamanda bir kablosuz ağ genişleticidir. Roaming, mesh, airtime fairness ve band steering gibi bir çok ilave özelliğe sahiptir.

Mesh desteği ile kolay ağ genişletme
Çoklu SSID desteği
1200Mbps (5GHz'de 867Mbps'ye ve 2,4GHz'de 400Mbps'ye kadar) veri hızı
Airtime Fairness
Bant Yönlendirme
AP-Assisted Roaming
Vigor Router ve VigorACS'ın Merkezi AP Yönetimi ile uyumlu

Arayüzler
LAN Port	1x 10/100/1000M Base-T, RJ-45
Anten	2x Internal DB PiFA Gain: 4.79 dBi for 5GHz, 3.35 dBi for 2.4GHz
Buton	1x LED On/Off
Kapasite
2.4G Peak Speed	300 Mbps
5G Peak Speed	867 Mbps
Max. Number of Concurrent Active Clients	64 (32 per band)
WLAN
2.4GHz Standard	IEEE 802.11b/g/n
5GHz Standard	IEEE 802.11a/n/ac
MIMO	2x2 (2-stream)
Operating Mode	AP, Mesh, Range Extender
Roaming	AP-Assisted Roaming, PMK-Caching, Pre-Authentication
Airtime Fairness	*
Max. Number of SSID	4 (2 per band)
Authentication	Pre-Shared Key, 802.1X
WPS	PIN, PBC
Wireless LAN Isolation	*
Access Control List	Up to 256 MAC Adddress
Bandwidth Limit per Client	*
Client Numer Limit	Per radio, Per SSID
Connection Time Control	*
Mobile Device Management	*
WMM	*
Uygulamalar
RADIUS Proxy	PEAP, EAP-TLS
DHCP Client	*
Static IP	*
MAC Clone	*
802.1q VLAN	*
iOS Keep Alive	*
Schedule	Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Yönetim
Local Service	HTTP, HTTPS, Telnet
Configuration	Stand Alone, TR-069 (VigorACS), Vigor Router APM, VigorConnect, VigorAP Mesh Root
Tools	Speed Test, AP Discovery, Statistics
Syslog	*
Mail Alert	*
SNMP	v2, v2c, v3
Managed by VigorConnect	*
Managed by VigorACS	*
Fiziksel
Environment	Indoor
Mounting	Wall Plug
Power Method	DC 5V/1.5A
Max. Power Consumption	10.7 watts
Dimension (W x H x D)	59mm x 91mm x 40mm (Power plug not included)
Weight	130 g
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Operating Humidity	10 to 90% non-condensing
Certificate	CE, FCC

Benzer Ürünler

Genel

Kategori	Access Point
Ortam	İç Ortam
Frekans	2.4/5GHz (AC)
POE Desteği	Yok
Port Sayısı	1 Port
3G/4G Desteği	Yok
SFP Desteği	Yok
USB Desteği	Yok

Genel Bakış

LAN Port	1x 10/100/1000M Base-T, RJ-45
Anten	2x Internal DB PiFA Gain: 4.79 dBi for 5GHz, 3.35 dBi for 2.4GHz
Buton	1x LED On/Off
2.4G Peak Speed	300 Mbps
5G Peak Speed	867 Mbps
Max. Number of Concurrent Active Clients	64 (32 per band)
2.4GHz Standard	IEEE 802.11b/g/n
5GHz Standard	IEEE 802.11a/n/ac
MIMO	2x2 (2-stream)
Operating Mode	AP, Mesh, Range Extender
Roaming	AP-Assisted Roaming, PMK-Caching, Pre-Authentication
Airtime Fairness	*
Max. Number of SSID	4 (2 per band)
Authentication	Pre-Shared Key, 802.1X
WPS	PIN, PBC
Wireless LAN Isolation	*
Access Control List	Up to 256 MAC Adddress
Bandwidth Limit per Client	*
Client Numer Limit	Per radio, Per SSID
Connection Time Control	*
Mobile Device Management	*
WMM	*
RADIUS Proxy	PEAP, EAP-TLS
DHCP Client	*
Static IP	*
MAC Clone	*
802.1q VLAN	*
iOS Keep Alive	*
Schedule	Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Local Service	HTTP, HTTPS, Telnet
Configuration	Stand Alone, TR-069 (VigorACS), Vigor Router APM, VigorConnect, VigorAP Mesh Root
Tools	Speed Test, AP Discovery, Statistics
Syslog	*
Mail Alert	*
SNMP	v2, v2c, v3
Managed by VigorConnect	*
Managed by VigorACS	*
Environment	Indoor
Mounting	Wall Plug
Power Method	DC 5V/1.5A
Max. Power Consumption	10.7 watts
Dimension (W x H x D)	59mm x 91mm x 40mm (Power plug not included)
Weight	130 g
Operating Temperature	0 to 40°C
Storage Temperature	-20 to 60°C
Operating Humidity	10 to 90% non-condensing
Certificate	CE, FCC
