RUIJIE REYEE RG-ES210GC-LP 8 PORT 10/100/1000 8 PORT POE 2 PORT UPLINK 70 WATT RUJIE CLOUD YONETILEBILIR DESKTOP SWITCH

Ürün Kodu: 17621
MPN / EAN: 6971693271883
Marka: RUIJIE

Fiyat için bayi girişi yapın

Orijinal ürün, distribütör garantili.

RUIJIE REYEE RG-ES210GC-LP 8 PORT 10/100/1000 8 PORT POE 2 PORT UPLINK 70 WATT RUJIE CLOUD YONETILEBILIR DESKTOP SWITCH

Model	RG-ES210GC-LP
Switching capacity	20Gbps
Switching Cache	1.5Mbit
Package forwarding rate	14.8Mpps
Ports	8 10/100/1000 Base-T ports (PoE/PoE+), 2 10/100/1000 Base-T uplink port
PoE Standard	IEEE 802.3at / 802.af
PoE Power Budget	70W
Speed / Duplex mode	Auto / Half / Full duplex Speed auto / 10/ 100 /1000
MAC address	4K
Maximum Number of VLANs	16
Allowed VLAN ID	1 ~ 4094
Port-based VLAN	Support
Flow Control	Support
Loop Protection	Support
Unknown Unicast Suppression	Support
Multicast / Broadcast Storm Suppression	Support
Mirroring	Many-to-One Mirroring
Port Isolation	Support
Cable Testing	Support
ICMP Ping	Support
DNS	DNS Client
Telnet	Support
MACC	Support
Port Surge	Common mode: 4KV
Electrostatic Discharge	Air discharge: 6KV Contact discharge: 4KV
Power Consumption	≤ 80W
Power supply	External power adapter 100-240V
Model Specifications	RG-ES210GC-LP
Dimensions (W x D x H)	202 x 108 x 28 mm
Weight	1.3 kg (with package)
MTBF	>200K
Operating temperature	0 to 40°C
Storage temperature	-40~70ºC
Operating humidity	10% to 90% RH
Storage humidity	5% to 95% RH
Operating Altitude	-500 ~ 5000 meters
FAN	Fanless
Management	Support management and configuration through web management interface, MACC cloud platform and mobile app
Safety Standard Ground Resistance	GB4943-2011, EN 62638-1
EMC	GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035

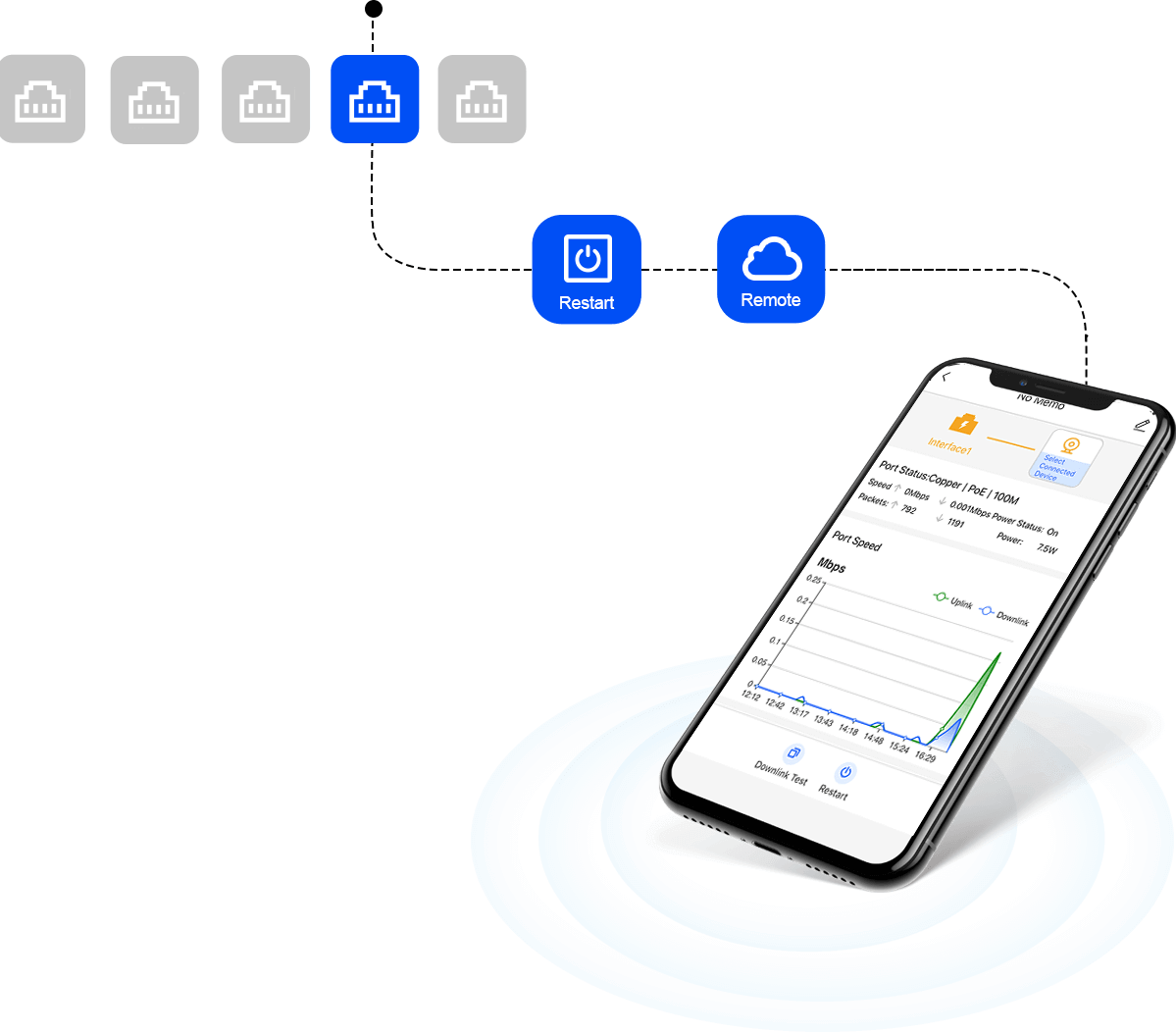

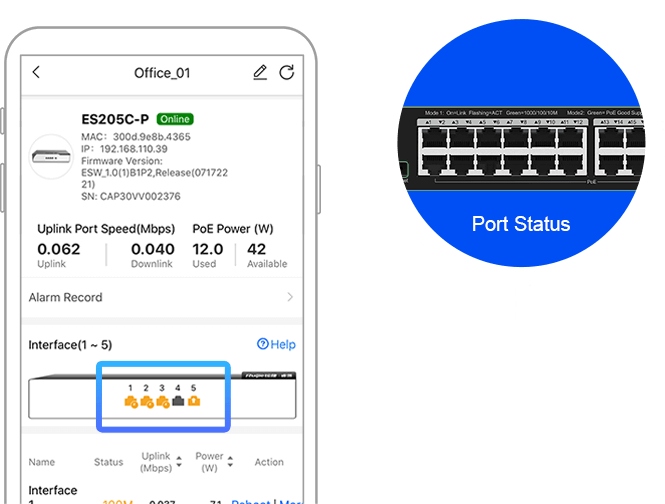

Port Status At-a-glance
On Your Mobile Phone

Offering You a Clear Perspective

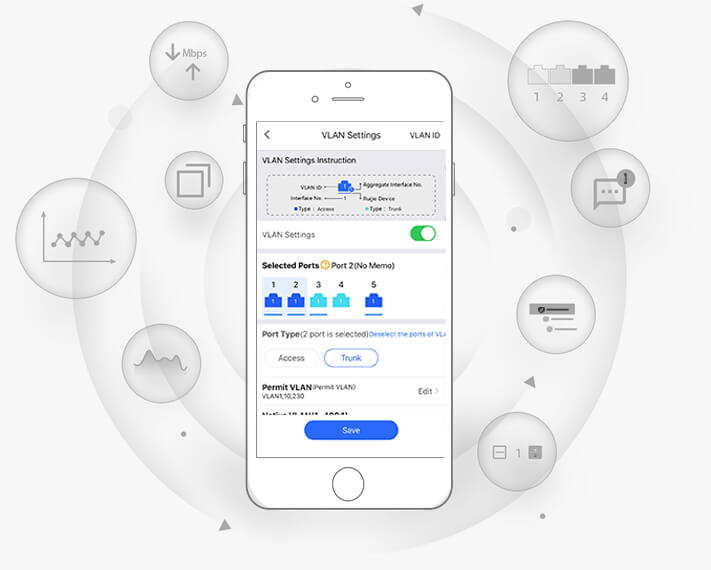

VLAN Configuration on Mobile Phones,Visualized Configuration Experience

Breaking new ground with easy operationexperience on mobile phones

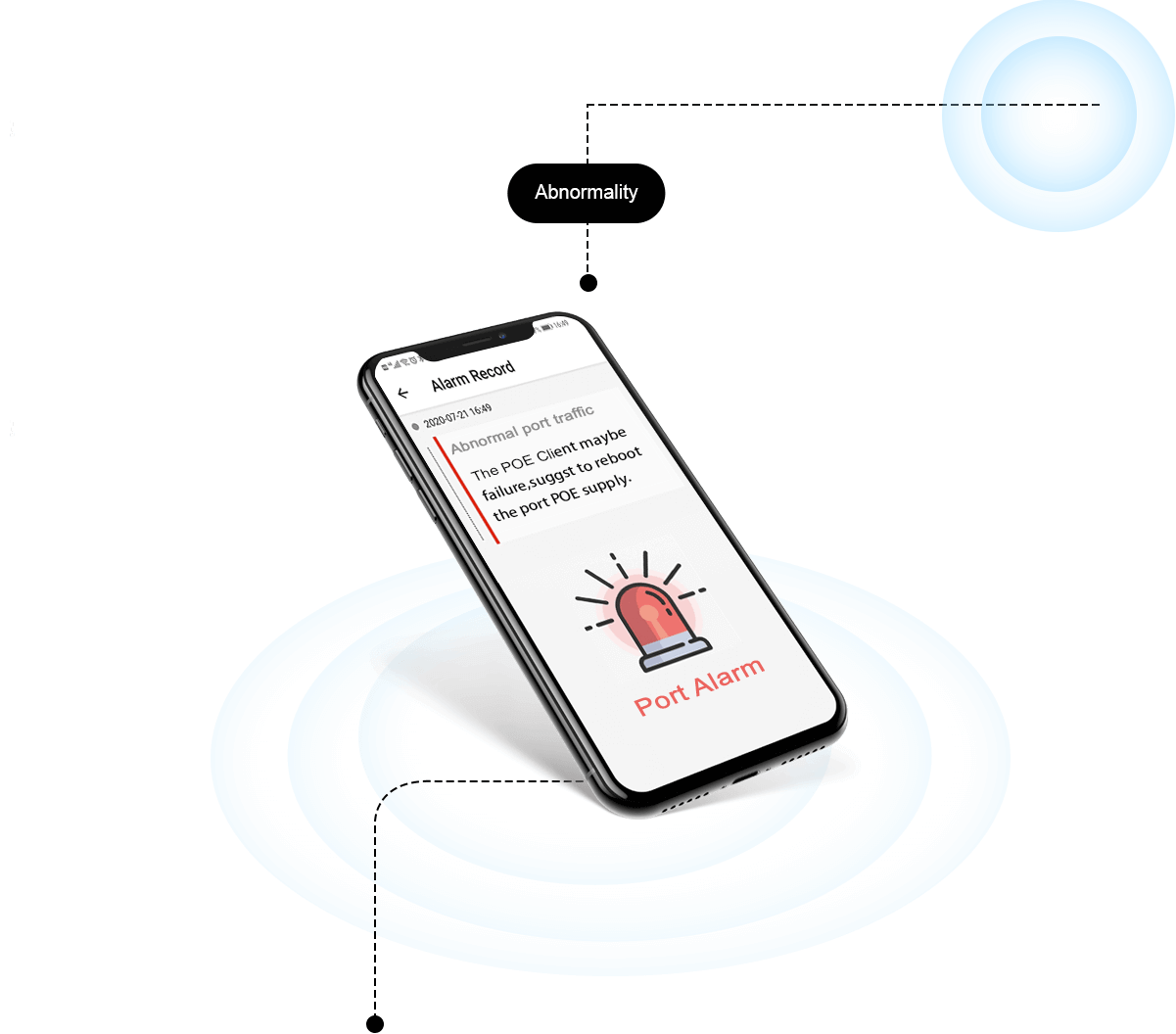

Failure Alarm and Fault Positioning

Quick Response — Excellent Troubleshooting Assistant

Benzer Ürünler

Genel

Port Sayısı	8 Port
Veri Transfer Hızı	10/100/1000
SFP Port	Yok
Yönetim	Yönetilebilir
Rackmount	Yok
Uplink Port	2 PORT UPLINK

Genel Bakış

Model	RG-ES210GC-LP
Switching capacity	20Gbps
Switching Cache	1.5Mbit
Package forwarding rate	14.8Mpps
Ports	8 10/100/1000 Base-T ports (PoE/PoE+), 2 10/100/1000 Base-T uplink port
PoE Standard	IEEE 802.3at / 802.af
PoE Power Budget	70W
Speed / Duplex mode	Auto / Half / Full duplex Speed auto / 10/ 100 /1000
MAC address	4K
Maximum Number of VLANs	16
Allowed VLAN ID	1 ~ 4094
Port-based VLAN	Support
Flow Control	Support
Loop Protection	Support
Unknown Unicast Suppression	Support
Multicast / Broadcast Storm Suppression	Support
Mirroring	Many-to-One Mirroring
Port Isolation	Support
Cable Testing	Support
ICMP Ping	Support
DNS	DNS Client
Telnet	Support
MACC	Support
Port Surge	Common mode: 4KV
Electrostatic Discharge	Air discharge: 6KV Contact discharge: 4KV
Power Consumption	≤ 80W
Power supply	External power adapter 100-240V
Model Specifications	RG-ES210GC-LP
Dimensions (W x D x H)	202 x 108 x 28 mm
Weight	1.3 kg (with package)
MTBF	>200K
Operating temperature	0 to 40°C
Storage temperature	-40~70ºC
Operating humidity	10% to 90% RH
Storage humidity	5% to 95% RH
Operating Altitude	-500 ~ 5000 meters
FAN	Fanless
Management	Support management and configuration through web management interface, MACC cloud platform and mobile app
Safety Standard Ground Resistance	GB4943-2011, EN 62638-1
EMC	GB9254-2008, EN 55032, EN61000-3-2, EN61000-3-3, EN 55035
