RUIJIE REYEE RG-ES209GC-P 8 PORT + 1 PORT UPLINK 10/100/1000 8 PORT POE/POE+ 120W RUJIE CLOUD YONETILEBILIR DESKTOP SWIT

Ürün Kodu: 14491
MPN / EAN: 6971693270404
Marka: RUIJIE

Fiyat için bayi girişi yapın

Orijinal ürün, distribütör garantili.

RUIJIE REYEE RG-ES209GC-P 8 PORT + 1 PORT UPLINK 10/100/1000 8 PORT POE/POE+ 120W RUJIE CLOUD YONETILEBILIR DESKTOP SWITCH

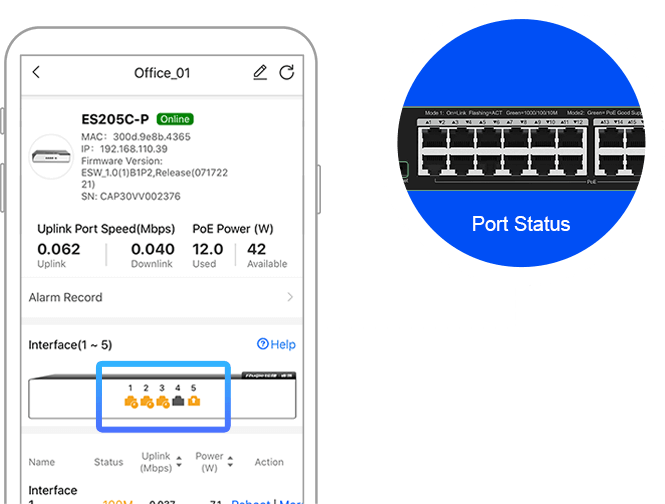

Port Status At-a-glance
On Your Mobile Phone

Offering You a Clear Perspective

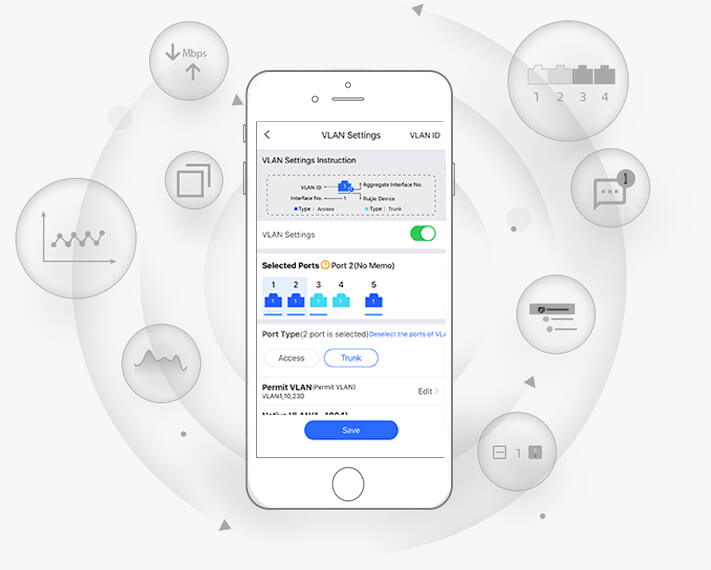

VLAN Configuration on Mobile Phones,Visualized Configuration Experience

Breaking new ground with easy operationexperience on mobile phones

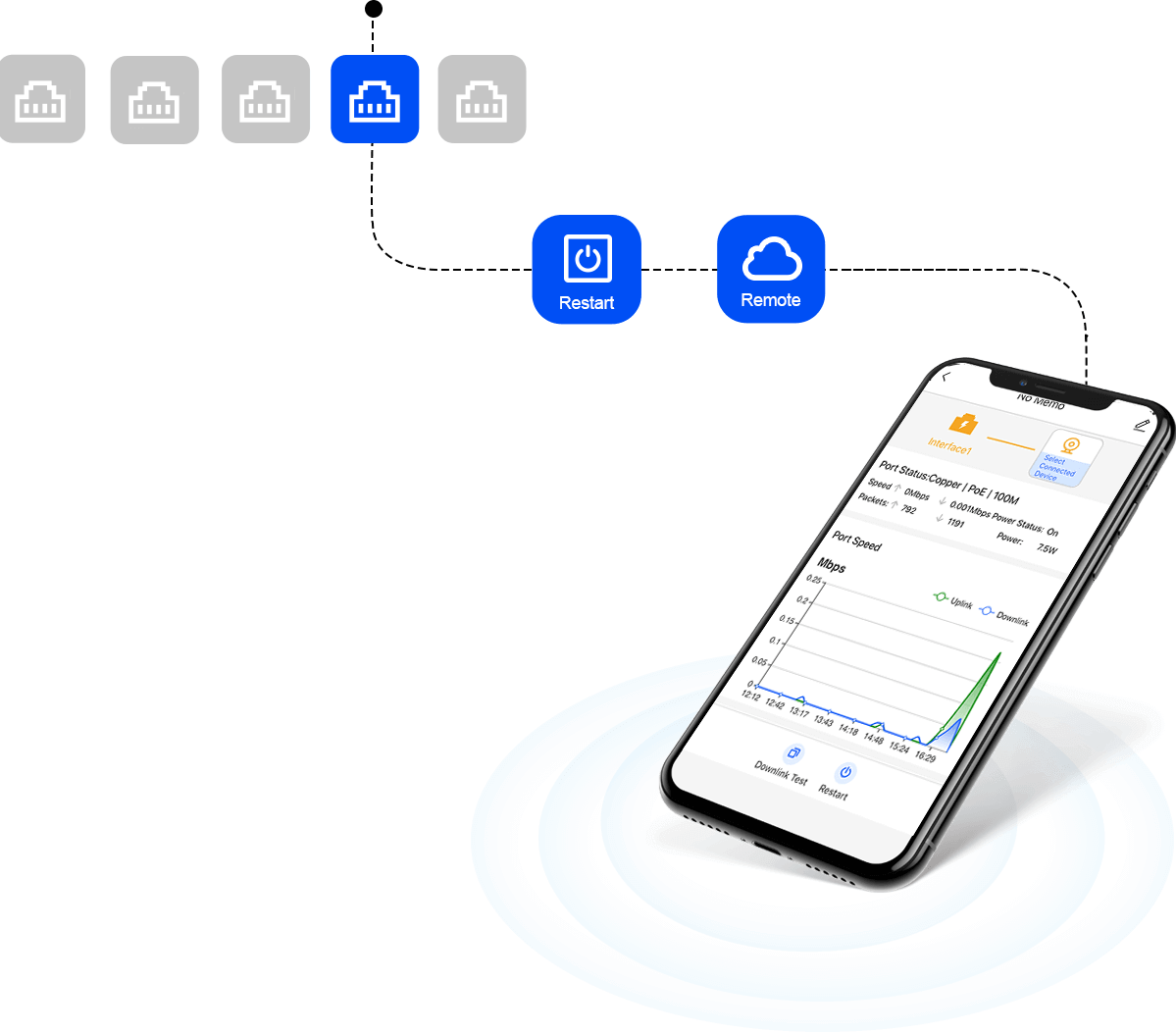

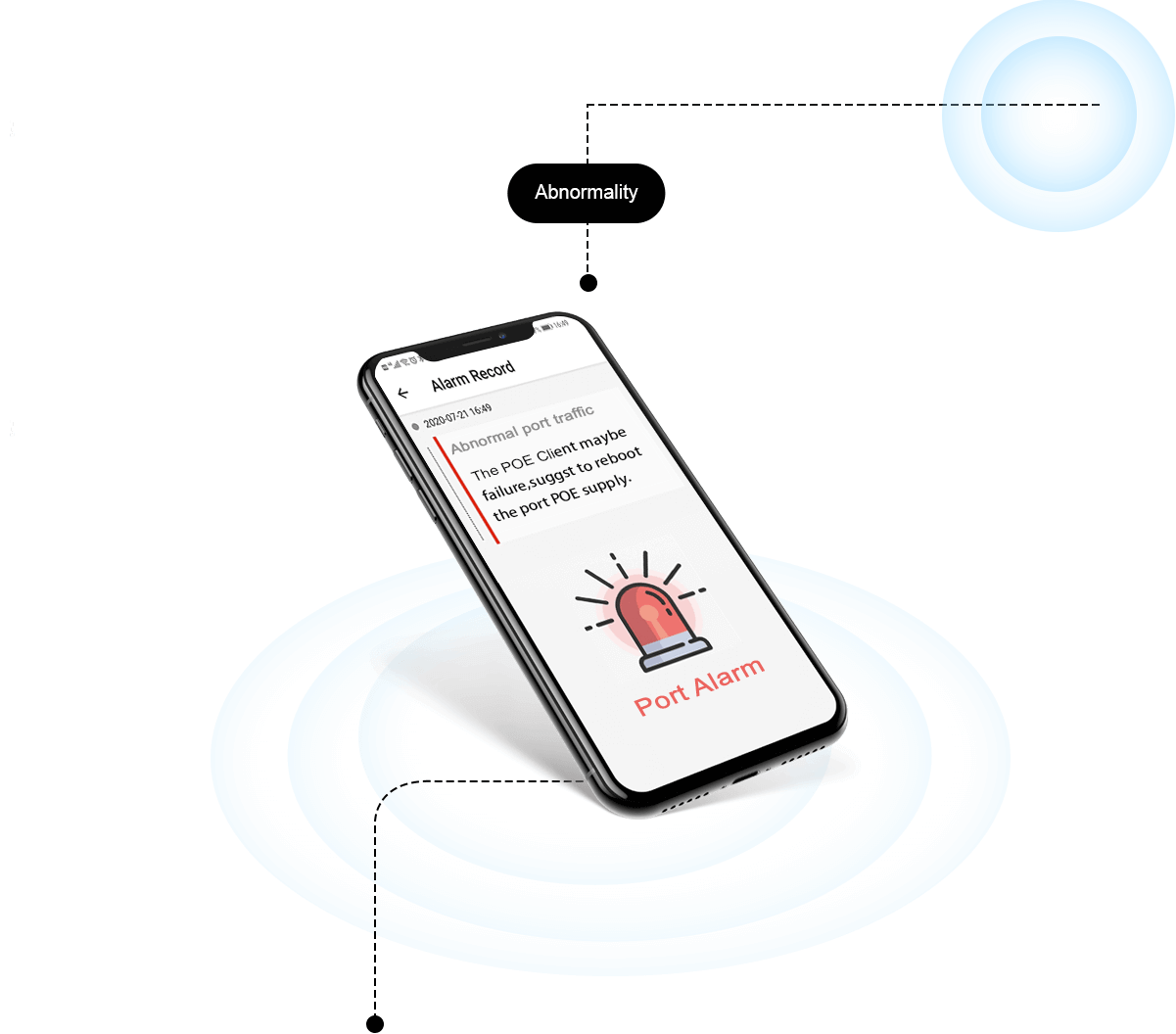

Failure Alarm and Fault Positioning

Quick Response — Excellent Troubleshooting Assistant

Model Specifications	RG-ES209GC-P
Model Specifications	RG-ES209GC-P
Hardware specifications
Ports	8 10/100/1000 Base-T ports (PoE/PoE+), 1 10/100/1000 Base-T port
Maximum output power per PoE port	30W
Maximum PoE output power per switch	120W
Switching capacity	18Gbps
Packet forwarding rate	13.392Mpps
Surge protection	Common mode: 4KV
Electrostatic discharge	Air discharge: 6KV Contact discharge: 4KV
Power consumption	≤130W
Power supply	External power adapter
Dimensions (W x D x H)	20210828mm
MTBF	>200K
Operating environment
Operating temperature	0 to 40°C
Storage temperature	-40~70ºC
Operating humidity	10% to 90% RH
Storage humidity	5% to 95% RH
Software features
MAC capacity	4K
Static MAC address	16
VLAN	Support 802.1Q VLAN
Port management	Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off
Security	Support broadcast storm suppression, port speed limit, port isolation
L2 features	Support port mirroring, loop protection, cable detection
Management	Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app

#ruijie #reyee #ruijieturkiye #switch #accespoint #gateway #poe #poeswitch #ruijiecloud #cloud #cctv #network

Benzer Ürünler

Genel

Port Sayısı	8 Port
Veri Transfer Hızı	10/100/1000
SFP Port	Yok
Yönetim	Yönetilebilir
Rackmount	Yok
Uplink Port	1 PORT UPLINK

RUIJIE REYEE RG-ES209GC-P 8 PORT + 1 PORT UPLINK 10/100/1000 8 PORT POE/POE+ 120W RUJIE CLOUD YONETILEBILIR DESKTOP SWITCH

Model Specifications	RG-ES209GC-P
Model Specifications	RG-ES209GC-P
Ports	8 10/100/1000 Base-T ports (PoE/PoE+), 1 10/100/1000 Base-T port
Maximum output power per PoE port	30W
Maximum PoE output power per switch	120W
Switching capacity	18Gbps
Packet forwarding rate	13.392Mpps
Surge protection	Common mode: 4KV
Electrostatic discharge	Air discharge: 6KV Contact discharge: 4KV
Power consumption	≤130W
Power supply	External power adapter
Dimensions (W x D x H)	20210828mm
MTBF	>200K
Operating temperature	0 to 40°C
Storage temperature	-40~70ºC
Operating humidity	10% to 90% RH
Storage humidity	5% to 95% RH
MAC capacity	4K
Static MAC address	16
VLAN	Support 802.1Q VLAN
Port management	Support port status display, port traffic statistics, PoE port output power status, port duplex / negotiation rate configuration, flow control configuration, PoE output on/off
Security	Support broadcast storm suppression, port speed limit, port isolation
L2 features	Support port mirroring, loop protection, cable detection
Management	Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app
