Name: HUAWEI eKIT AP265E AX3000 WIFI6 2976 MBPS 4PORT 2.4G 2x2MIMO 5G 2x2MIMO SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ IND
Brand: HUAWEI eKIT
SKU: 25214

Yetkili B2B Portalı•Toptan Bilişim & Donanım Dağıtımı

TCMB:USD₺49,3358/EUR₺55,2068

Bayilik Başvurusu

Bayi GirişiGiriş

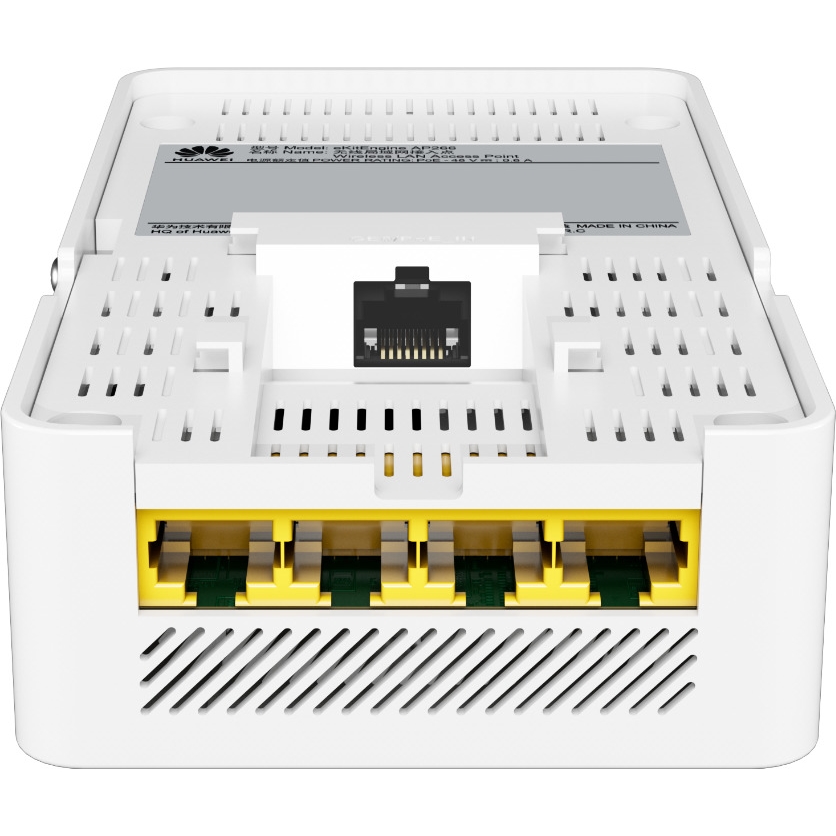

HUAWEI eKIT AP265E AX3000

WIFI6 2976 MBPS 4PORT 2.4G 2x2MIMO 5G 2x2MIMO SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ INDOOR ACCESS POİNT

Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Installation Type	Desk,Wall,Ceiling (Gypsum Board),Junction Box (86 mm/1-Gang 120 mm/Octagonal)
Optimal Signal Distance (m)	20
Max Number of Access Users	128
Recommended Number of Access Users	64
Device Rate	2.975 Gbps
Maximum number of physical ports on the entire device	GE (RJ45) x 5, 10M/100M/1000M auto-sensing
Radio number	2
Maximum channel bandwidth [MHz]	Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz
Maximum transmit power	2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2
Maximum power consumption [W]	9.4
Input voltage range [V]	PoE: 802.3af
Dimensions without packaging (H x W x D) [mm(in.)]	160 mm x 86 mm x 38 mm (6.30 in. x 3.39 in. x 1.50 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	187 mm x 108 mm x 68 mm (7.36 in. x 4.25 in. x 2.68 in.)
Weight without packaging [kg(lb)]	0.23 kg (0.51 lb)
Weight with packaging [kg(lb)]	0.42 kg (0.93 lb)
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Radio interface	Built-in smart antennas
Antenna gain	2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) 5G: 4 dBi/chain (peak value) 1 dBi (combined gain)
Operating frequency band	2.4GHz,5GHz

Genel

Kategori	Access Point
POE Desteği	Var
3G/4G Desteği	Yok
Port Sayısı	4 Port
Ortam	İç Ortam
Frekans	AX Wi-Fi6
SFP Desteği	Yok
USB Desteği	Yok

WIFI6 2976 MBPS 4PORT 2.4G 2x2MIMO 5G 2x2MIMO SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ INDOOR ACCESS POİNT

Maximum power consumption [W]
Wi-Fi standard	2.4 GHz: 802.11b/g/n/ax 5 GHz: 802.11a/n/ac/ac Wave 2/ax
Installation Type	Desk,Wall,Ceiling (Gypsum Board),Junction Box (86 mm/1-Gang 120 mm/Octagonal)
Optimal Signal Distance (m)	20
Max Number of Access Users	128
Recommended Number of Access Users	64
Device Rate	2.975 Gbps
Maximum number of physical ports on the entire device	GE (RJ45) x 5, 10M/100M/1000M auto-sensing
Radio number	2
Maximum channel bandwidth [MHz]	Radio 0 (2.4 GHz): 40 MHz Radio 1 (5 GHz): 160 MHz
Maximum transmit power	2.4G: 20 dBm/chain 23 dBm (combined power) 5G: 20 dBm/chain 23 dBm (combined power)
MIMO spatial streams	Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2

Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)

HUAWEI eKIT AP265E AX3000 WIFI6 2976 MBPS 4PORT 2.4G 2x2MIMO 5G 2x2MIMO SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ IND

HUAWEI eKIT AP265E AX3000

WIFI6 2976 MBPS 4PORT 2.4G 2x2MIMO 5G 2x2MIMO SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ INDOOR ACCESS POİNT

Genel

WIFI6 2976 MBPS 4PORT 2.4G 2x2MIMO 5G 2x2MIMO SMART ANTENNA 2.4 GHZ & 5 GHZ POE ADAPTORSUZ INDOOR ACCESS POİNT
